Creating Mobile Vis Experiences

Mobile-Only Vis Experimental Apps

Check Your Head

							< head >
								...
								< meta name="HandheldFriendly"
									content="true" />
								< meta name="apple-mobile-web-app-capable"
									content="yes" />
								< meta name="mobile-web-app-capable"
									content="yes" />
								< meta name="viewport"
									content="minimal-ui,
									width=device-width,
									initial-scale=1.0,
									minimum-scale=1.0,
									maximum-scale=1.0,
									user-scalable=no" />
								...
							< /head>


CSS Media Queries

							@media only screen
							and (min-device-width: 320px)
							and (max-device-width: 1440px)
							and (max-device-height: 1440px)
							and (-webkit-min-device-pixel-ratio: 2)
							and (orientation: portrait) {
								...
							}

							@media only screen
							and (orientation: landscape) {
								...
							}

							@media only screen
							and (min-device-width: 1440px) {
								...
							}



Handling Orientation (Change)

							window.addEventListener('load', function() {

							 // respond to loading in undesirable orientation

							}

							window.onresize = function(e) {

							 // respond to rotation to undesirable orientation

							}



Handling Interruptions & Resumptions

							window.onblur = function(e) {

							 // respond to interruption (e.g., log + discard trial)

							}

							window.onfocus = function(e) {

							 // respond to resumption

							}



Handling Touch Events

							d3.select('#some_button')
							.on('touchstart', function() {

							 d3.event.preventDefault();

							 // respond to touch event

							}


Project Structure Example: MobileTrendVis

						app.js // node application requiring express, socket.io, ...
						package.json
						participantList.js // for server-side condition allocation
						web.config
						webpack.config.js

						src
						 globals.js // global variables
						 index.js // app initialization
						 dataset.js // stimuli data (UN economic metrics)
						 chart.js // the visualization stimuli
						 taskList.js // experimental task specifications
						 initTasks.js // allocate tasks and conditions to participant
						 trial.js // specifying the logic of a single trial

						public
						 style.css
						 index.html
						 main.js // output from webpack
						 assets // folder of images, icons, etc.

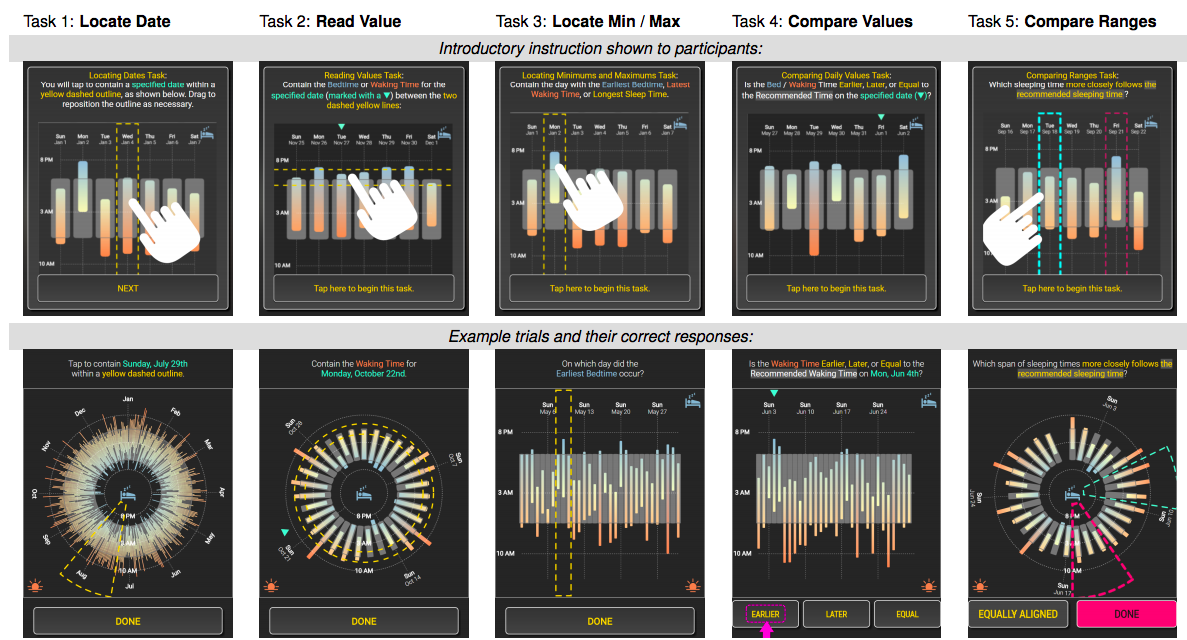

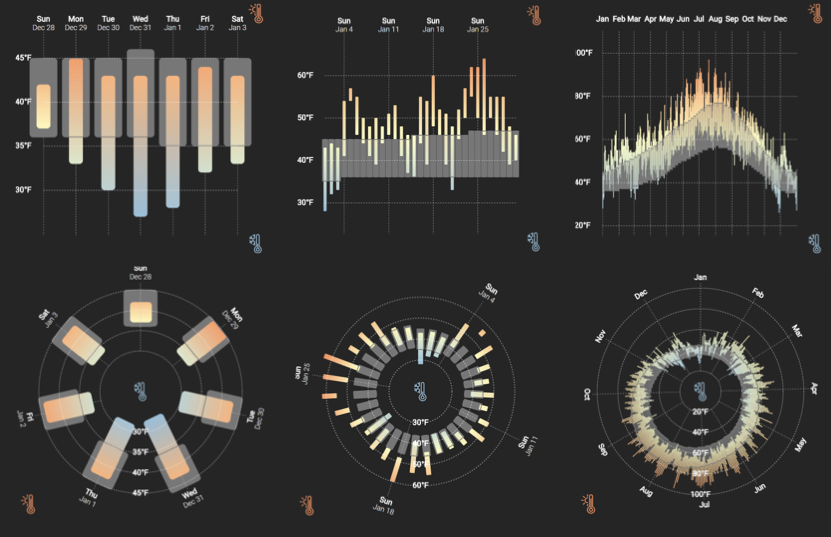

Interaction Design: RangesOnMobile

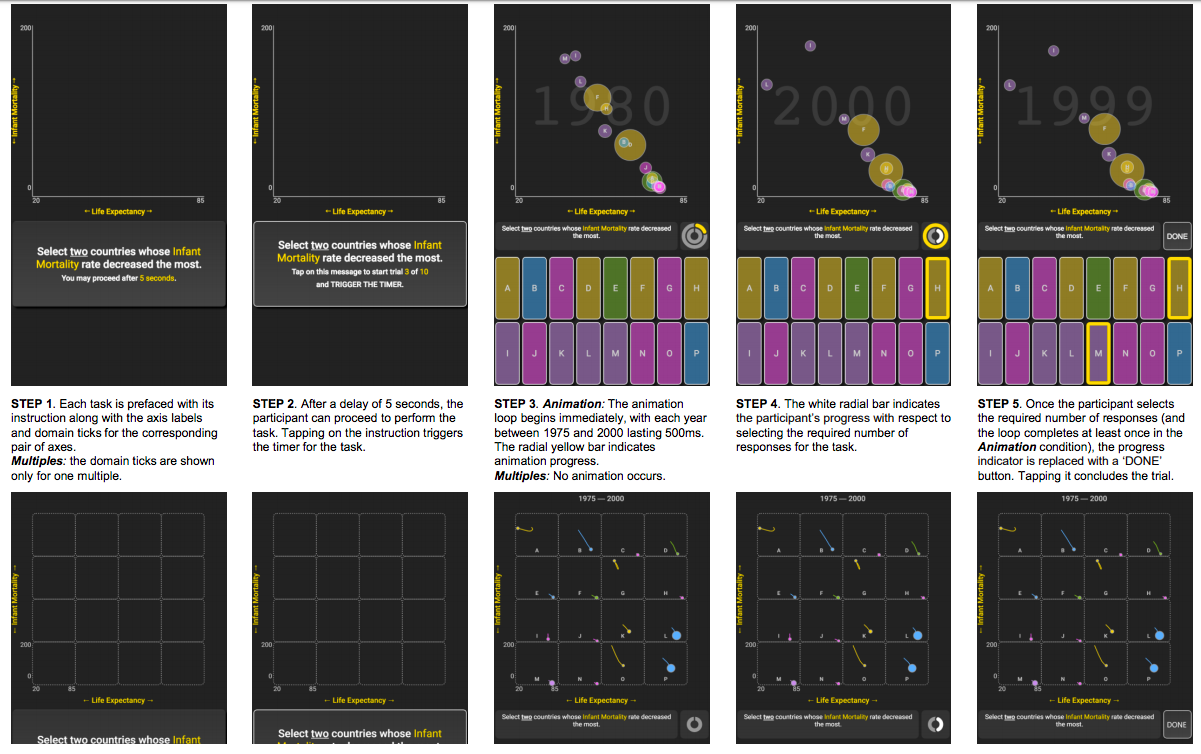

Interaction Design: MobileTrendVis

Logging Activity w/ AppInsights

						trial = {
						 user_id: userID,
						 trial_index: trial_index,
						 condition: trial_condition,
						 accuracy: 0,
						 start_time: 0,
						 interruptions: 0,
						 interruption_time: 0,
						 end_time: 0,
						 completion_time: 0,
						 give_up: false,
						 ...
						};

						appInsights.trackEvent("TrialComplete", trial);



Logging Participant Metadata

						> colnames(p_metadata.df)
						[1] "user_id" "load_time" "completion_time" "duration"
						[5] "client_Model" "client_OS" "client_Reg" "client_Browser"
						[9] "condition" "ordering" "Height" "Width"
						[13] "chart_dim" "excluded"

						> levels(p_metadata.df$client_OS) # MobileTrendVis
						[1] "Android"
						    "Android 4.3"
						    "Android 5.0"
						    "Android 5.1"
						    "Android 6.0"
						    "Android 7.0"
						    "Android 7.1"
						[8] "Android 8.0"
						    "Android 8.1"
						    "iOS 10.3"
						    "iOS 11.4"
						    "iOS 12.0"
						    "iOS 12.1"




Logging Participant Metadata (Cont.)

						> levels(p_metadata.df$client_Browser) # MobileTrendVis
						[1] "Chrome Mobile 51.0"
						    "Chrome Mobile 56.0"
						    "Chrome Mobile 59.0"
						    "Chrome Mobile 67.0"
						[5] "Chrome Mobile 68.0"
						    "Chrome Mobile 69.0"
						    "Chrome Mobile 70.0"
						    "Chrome Mobile 71.0"
						[9] "Chrome Mobile iOS 68.0"
						    "Chrome Mobile iOS 70.0"
						    "Chrome Mobile iOS 71.0"
						    "Facebook 193.0"
						[13] "Firefox iOS 13.2"
						     "Firefox Mobile 63.0"
						     "Mobile Safari 10.0"
						     "Mobile Safari 11.0"
						[17] "Mobile Safari 12.0"
						     "Samsung Internet 7.4"


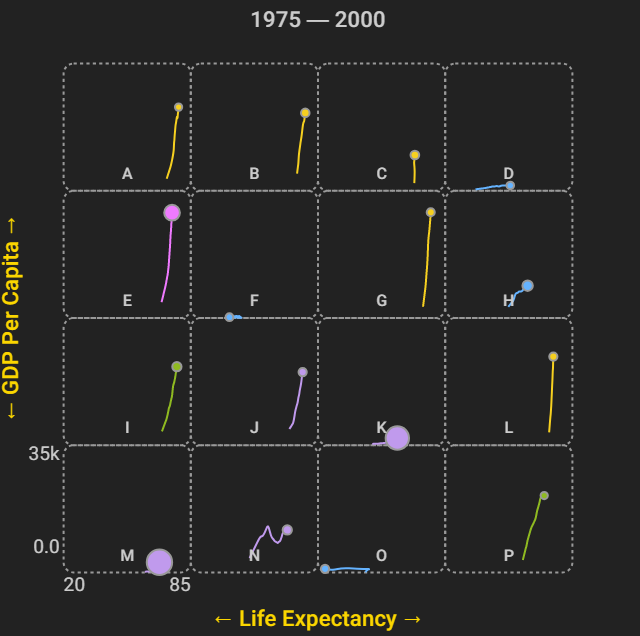

Logging Participant Metadata (Cont.)

							> summary(participant_metadata.df$Height)# MobileTrendVis
							Min. 1st Qu. Median Mean 3rd Qu. Max.
							452.0 549.2 560.0 587.0 620.5 822.0

							> summary(participant_metadata.df$Width)# MobileTrendVis
							Min. 1st Qu. Median Mean 3rd Qu. Max.
							320.0 360.0 375.0 378.6 412.0 414.0


Tutorial Outline

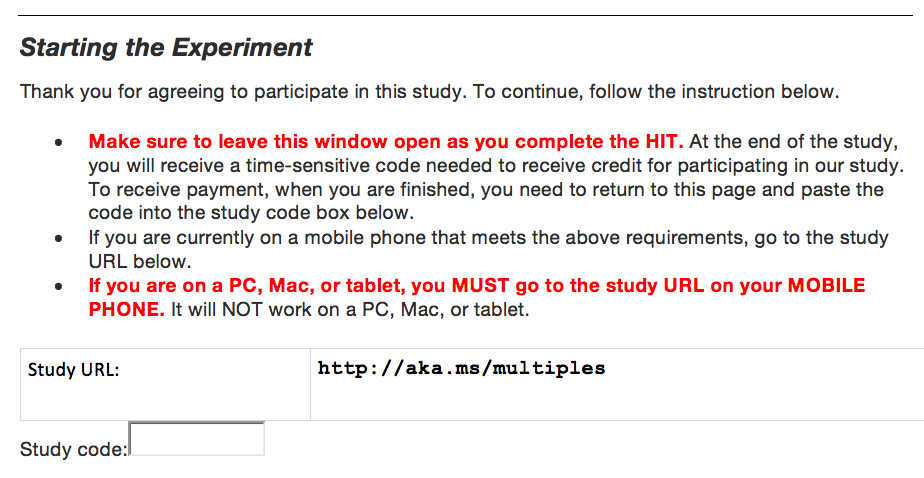

Recruiting + Piloting

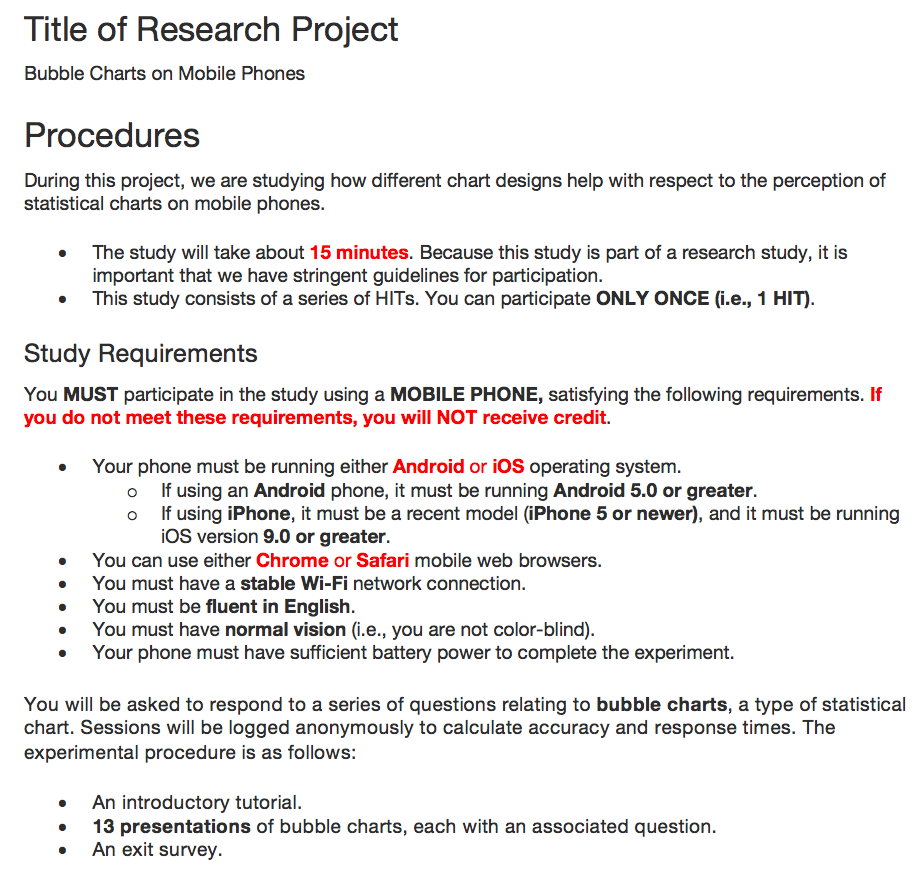

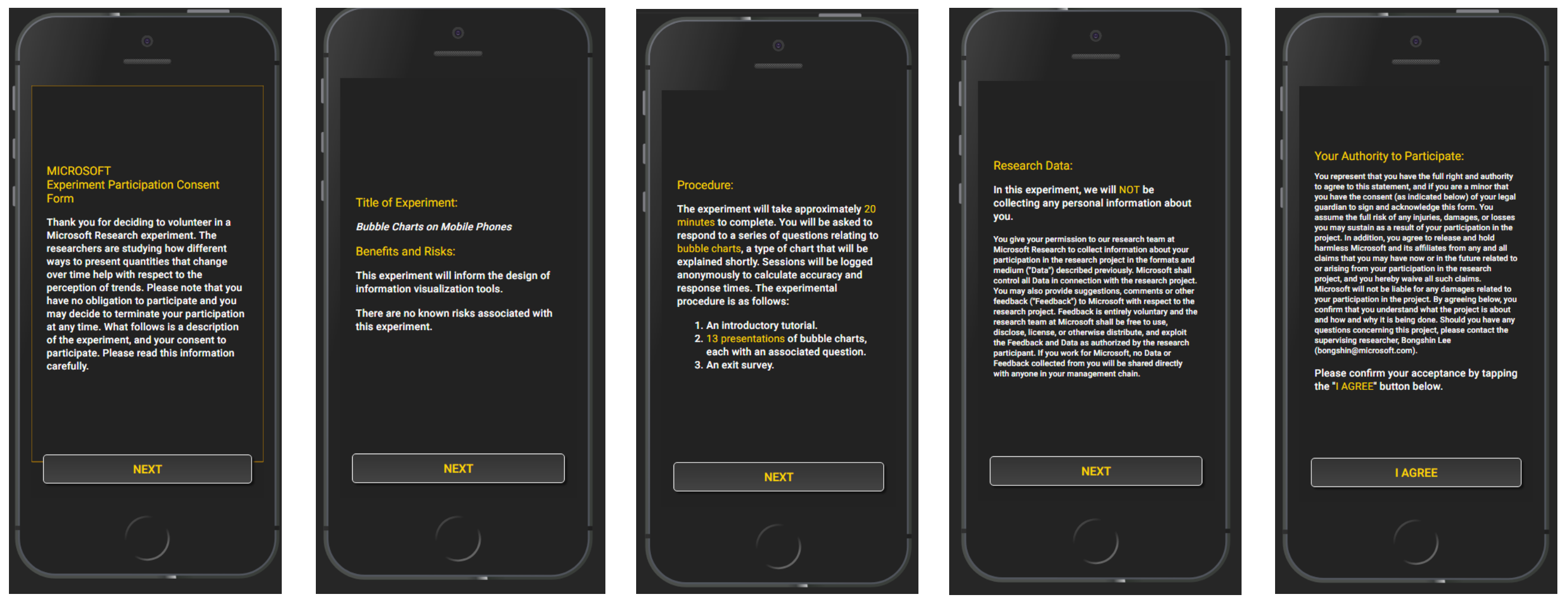

Repeating & Staging the Consent Process

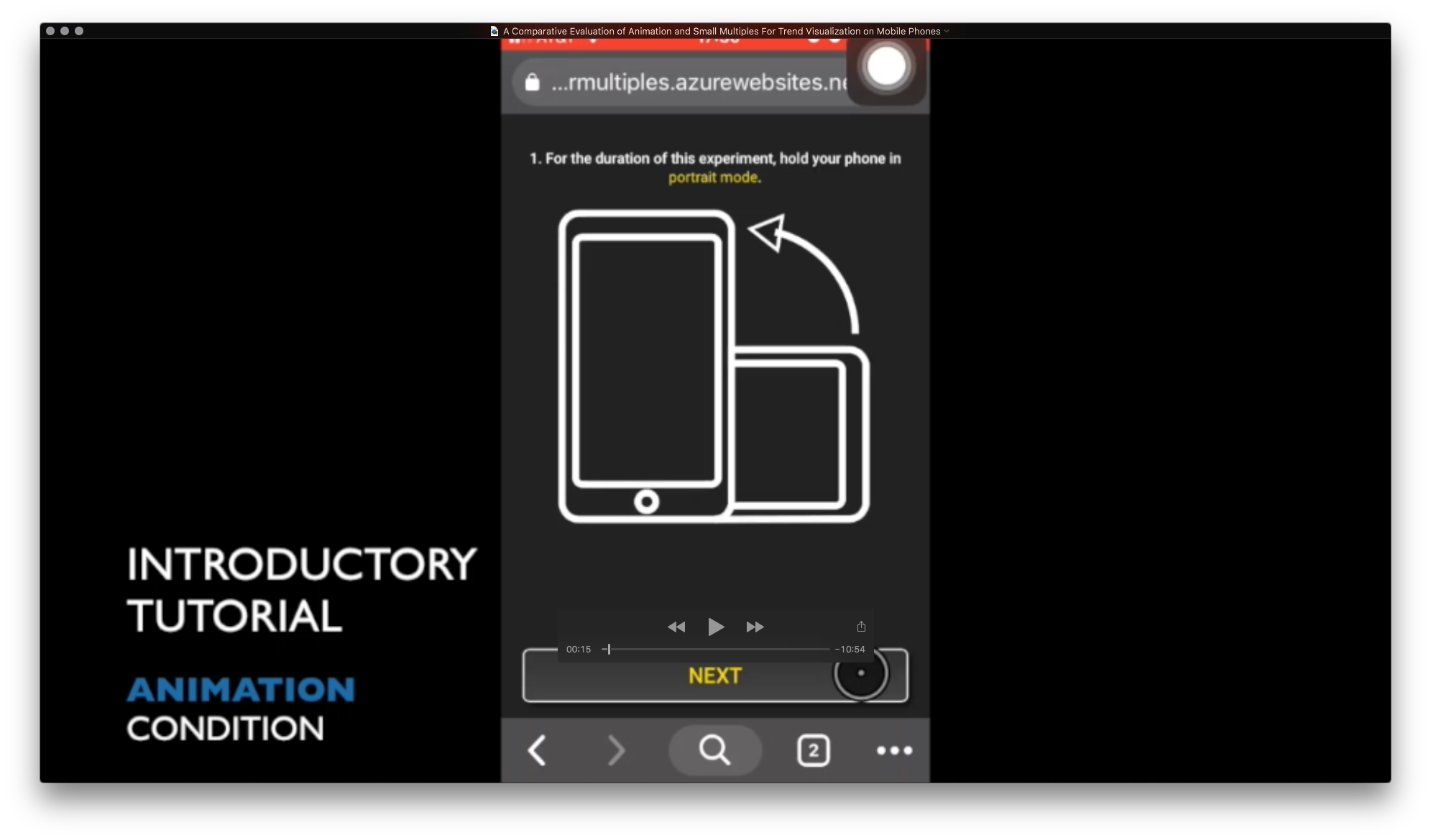

Onboarding: Tutorial + Training (Video)

Tutorial Outline

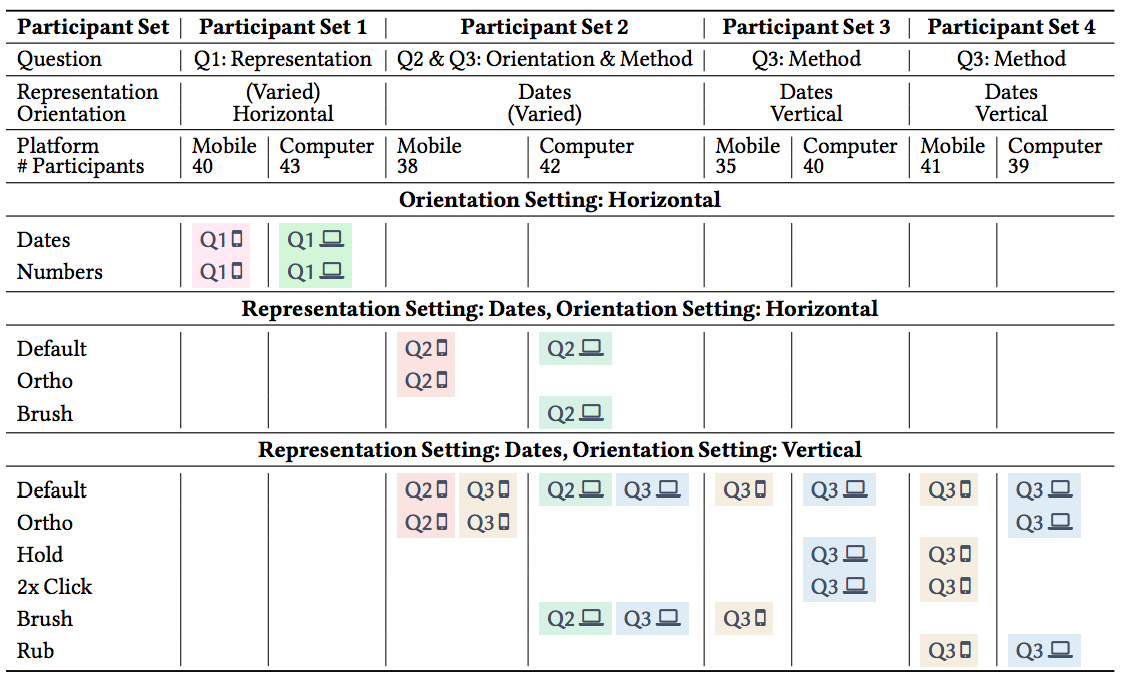

Assigning & Balancing Conditions

							socket.on('userID', function(msg) { // new participant

							 if (participantList.length > 0) {
							  // move next participant to progressList
							  // participantList contains condition assignments
							 }

							 else if (completedList.length > 0) {
							  // add extra participant considering completedList
							  // and its participants' condition assignments
							 }

							 else if (progressList.length > 0) {
							  // add extra participant when no one has finished yet
							 }

							 else {
							  // this shouldn't ever happen, but if it does, randomize
							 }
							}
